Every word stays in the picture.
Raiya Tx is designed for vocal intelligibility and full-range performance, so a good scene need not become a family game of “what did he say?”
Three-way centre loudspeaker
The centre channel.
Properly done.
Your left and right speakers have been working rather hard. The one in the middle should too. Raiya Tx puts dialogue where it belongs: clear, natural and convincing across more of the sofa.
Designed to integrate with Ara Tx, Rinjani Tx and Sasandu Tx. For other serious systems, bring us the specs and we will give you a straight answer.
01 / The pointVertical Satori midrange + tweeter alignment
Satori TeXtreme drivers
Three-way architecture
SG + MY system planning
Scroll for the proper bit
02 / Interest — proper company
Built by people who talk shop.
Field note / AA-2016High-fidelity, less faff
Artisan Acoustics has been getting pleasantly carried away with high-fidelity speakers in Singapore and Malaysia since 2016. We like Danish engineering, clever driver tech and avoiding the sort of markup that makes wallets cry uncle.
2016On the scene in Singapore + Malaysia
3TeXtreme family speakers made for the front stage
1Purpose-built centre to finish the job
0Interest in selling you a guess dressed up as advice
Raiya Tx is designed to integrate with Ara Tx, Rinjani Tx and Sasandu Tx. We assess third-party systems individually — because rooms, electronics and furniture have opinions too.
03 / Desire — why Raiya

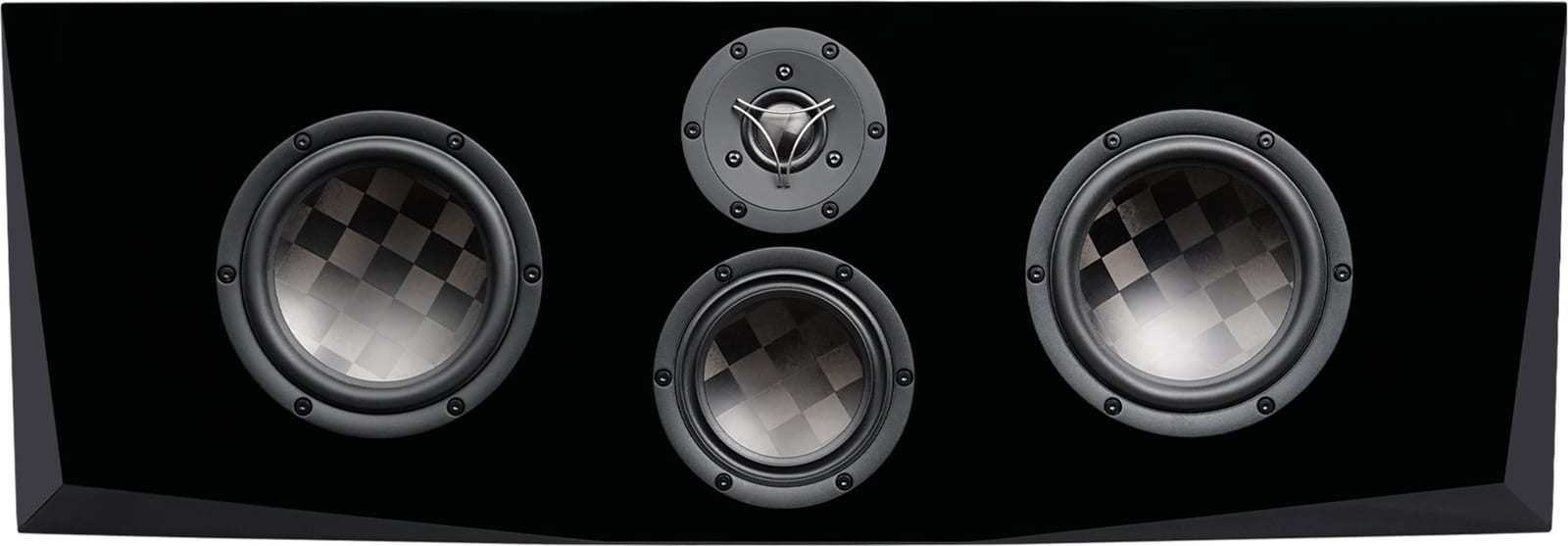

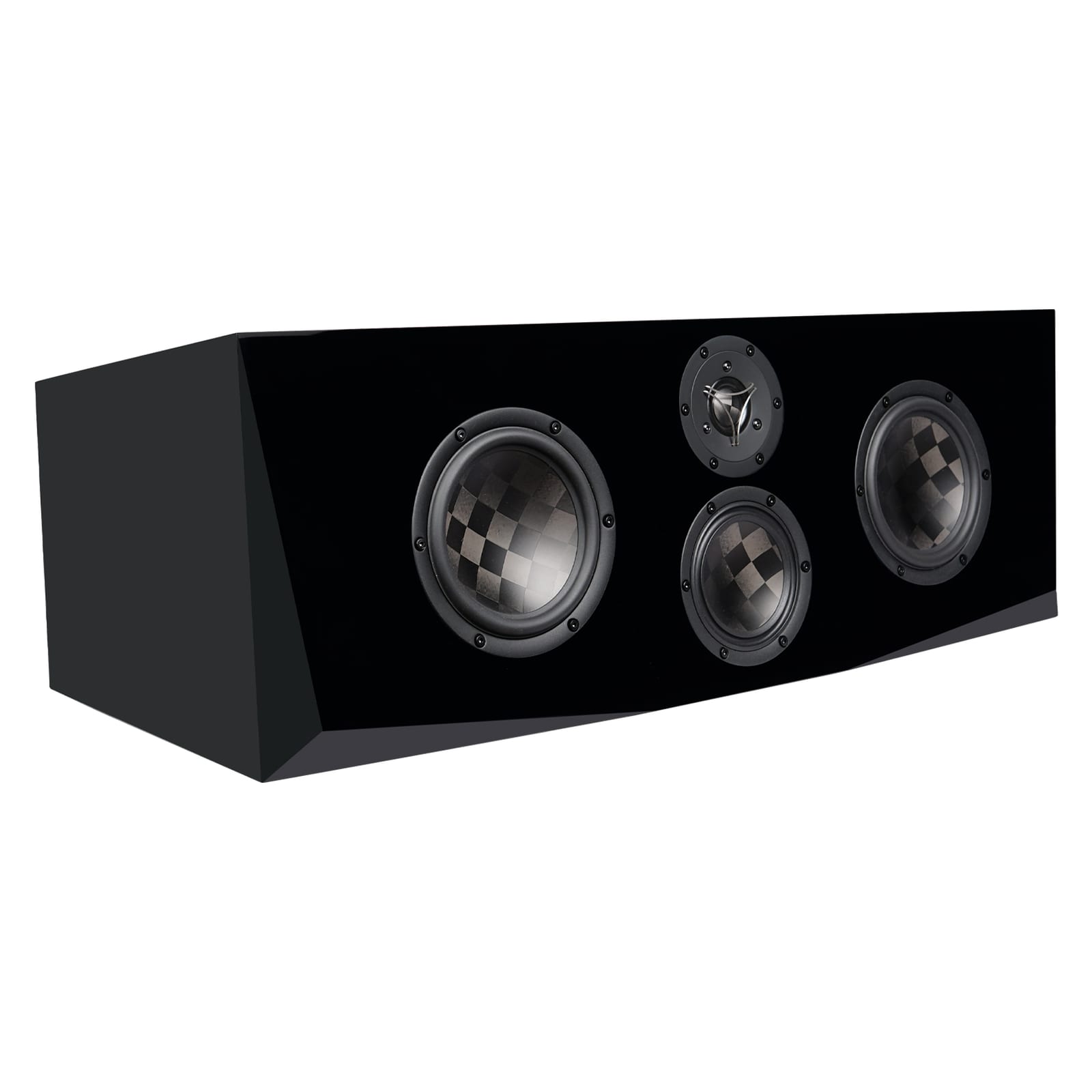

A vertical heart in a horizontal centre.
Most centre speakers lie down. The problems their driver arrangement can create do not. Raiya Tx gives dialogue the sort of grown-up engineering your front speakers would expect.
Ask about your room (opens WhatsApp in a new tab)Vertical by design.
The midrange and tweeter are aligned vertically, so the two drivers that cover the voice are not side by side. That is what avoids the horizontal comb-filtering of a conventional lying-down centre — in ordinary language, a cleaner presentation for more than one seat.
TeXtreme gets the hard job.
Satori TeXtreme drivers use thin-ply spread-tow carbon diaphragms: light, stiff and nicely suited to keeping pace when a film gets busy. Clever material. Very useful day job.
The two central drivers are the TM alignment. The flanking MW16TX-4 midwoofers take care of the other hard work.
04 / Desire — why TM matters
One coherent source. Fewer weird bits.
The critical vocal work lives in Raiya Tx's vertical tweeter–midrange alignment. That single TM source is not there for decoration. It is there so dialogue stays intelligible when someone politely steals the seat to your left.

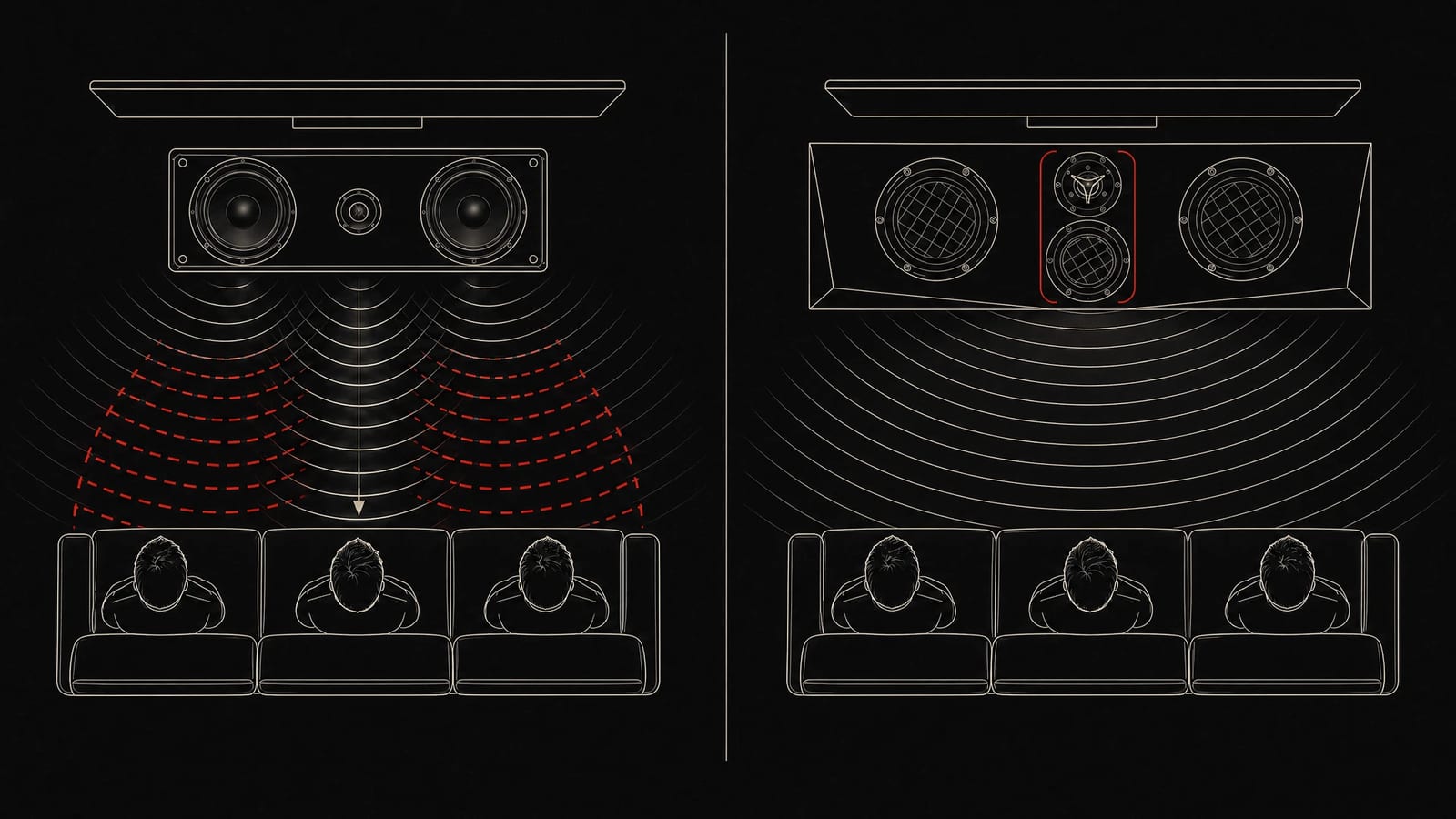

Conventional horizontal MTMRaiya Tx 3-way centre
Better off-axis clarity.
A single TM alignment avoids the destructive interference that occurs when two side-by-side drivers reproduce the same frequencies horizontally. The useful result: clearer dialogue off to the side of the sofa.
Phase coherence.
The vertical arrangement gives a more precise acoustic source point for vocal tracks in the horizontal plane, keeping the performance together rather than spreading it about.
Simulated point source.
It behaves like a standard vertical bookshelf monitor rather than one turned on its side, which is what keeps the horizontal response free of the interference dips that can spoil the plot.
SB Acoustics describes this vertical midrange–tweeter arrangement on the official Raiya Tx product page as eliminating comb-filtering artefacts found in conventional horizontal centre-channel layouts, for a cleaner, more natural presentation across a wide listening area.
05 / Desire — the bits that do the work
The Satori TeXtreme line-up.
Three purpose-selected drivers. One proper centre channel. Click through if you would like the full spec sheet and do not mind a few more graphs.
Satori TW29TXN-B-8
- TeXtreme dome
- 8 Ω nominal
- 93.5 dB sensitivity
- 29 mm voice coil

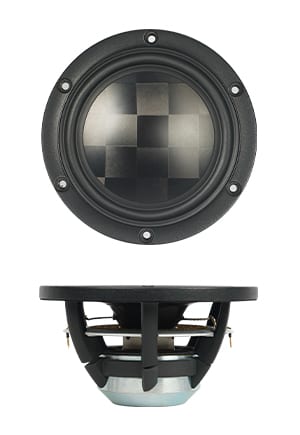

Satori MR13TX-4
- 5-inch TeXtreme cone
- 4 Ω nominal
- 90 dB sensitivity
- 30.5 mm voice coil
Satori MW16TX-4
- 6½-inch TeXtreme cone
- 4 Ω nominal
- 90.5 dB sensitivity
- 36 mm voice coil
06 / Detail — read the boring bit
The numbers are rather good too.
A centre channel should be clear about what it is. Raiya Tx is a three-way TeXtreme centre loudspeaker with the published specifications below. No spellcasting required.
Every figure here is as published by SB Acoustics. Nothing is estimated, interpolated or rounded to flatter. Where SB Acoustics publishes no value, there is no row.
| Specification | Value |
|---|---|
| Speaker type | Three-way centre speaker |
| Frequency range | 45 – 32,000 Hz |
| Sensitivity (2.83 V / 1 m) | 88 dB |
| Nominal impedance | 8 Ω |
| Maximum SPL | 105 dB |
| Recommended amplifier | 30 – 120 W |
| Crossover frequencies | 450 Hz and 2,800 Hz |
| Enclosure type | Bass reflex (woofers), sealed (midrange) |
| Port tuning frequency | 36 Hz |
| Internal volume | 15.3 L × 2 (woofers) + 9.6 L (midrange) |
| Cabinet material | 15 mm and 18 mm MDF |
| Dimensions (H × W × D) | 270 × 786 × 342 mm (10.6 × 30.9 × 13.5 in) |
| Net weight | 23.6 kg (52 lb) fully assembled |
| Driver complement | TW29TXN-B-8 / MR13TX-4 / 2 × MW16TX-4 |
07 / Detail — what turns up on the pallet
One cabinet, finished, with the drivers to fill it.
A centre is supplied and priced per cabinet — one cabinet, its magnetic grilles, and one crossover. That is exactly what you want from a centre channel: you buy one, and you match it to the front pair you already own.
The cabinets arrive finished. They are cut, assembled and finished at the same works that makes the drivers, on the same machines, to the same tolerances — so the job in front of you is the acoustics: mount the drivers, wire the crossover, fit the damping.
Six finishes are drawn up, and the same six run through the Ara, Rinjani and Sasandu cabinets — so a Raiya centre can be finished to match the front pair exactly.
| Item | Per cabinet |
|---|---|
| Cabinet | One, with magnetic grilles |
| Crossover | One |
| Midwoofer | Two × Satori MW16TX-4 |
| Midrange | One × Satori MR13TX-4 |
| Tweeter | One × Satori TW29TXN-B-8 |
- White satin
- White high gloss
- Black satin
- Black high gloss
- Red high gloss
- Orange high gloss
The swatches above are an indication of hue only — no screen can show you a high gloss lacquer, and satin and gloss in the same colour look nothing alike in a room. Tell us which finish you want when you enquire and we will confirm it against the current factory list before anything is ordered.
08 / Action — documentation without the drama
Get the proper paperwork.
Whether you are planning a finished system, building a cabinet or merely enjoy technical drawings more than is socially advisable, the official files are here.
PDF / user manual
Raiya Tx user manual
Official product information, specifications and setup documentation.

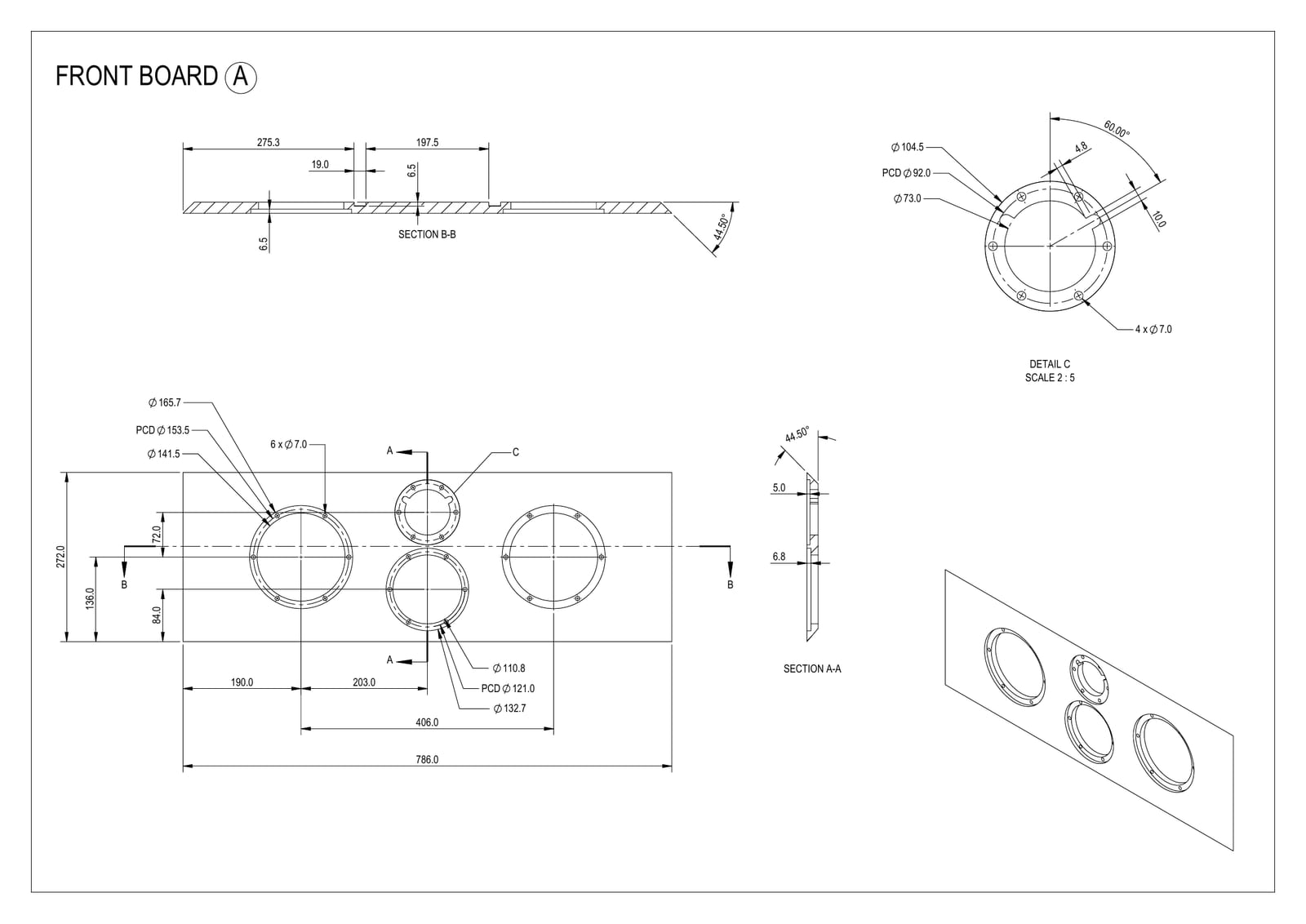

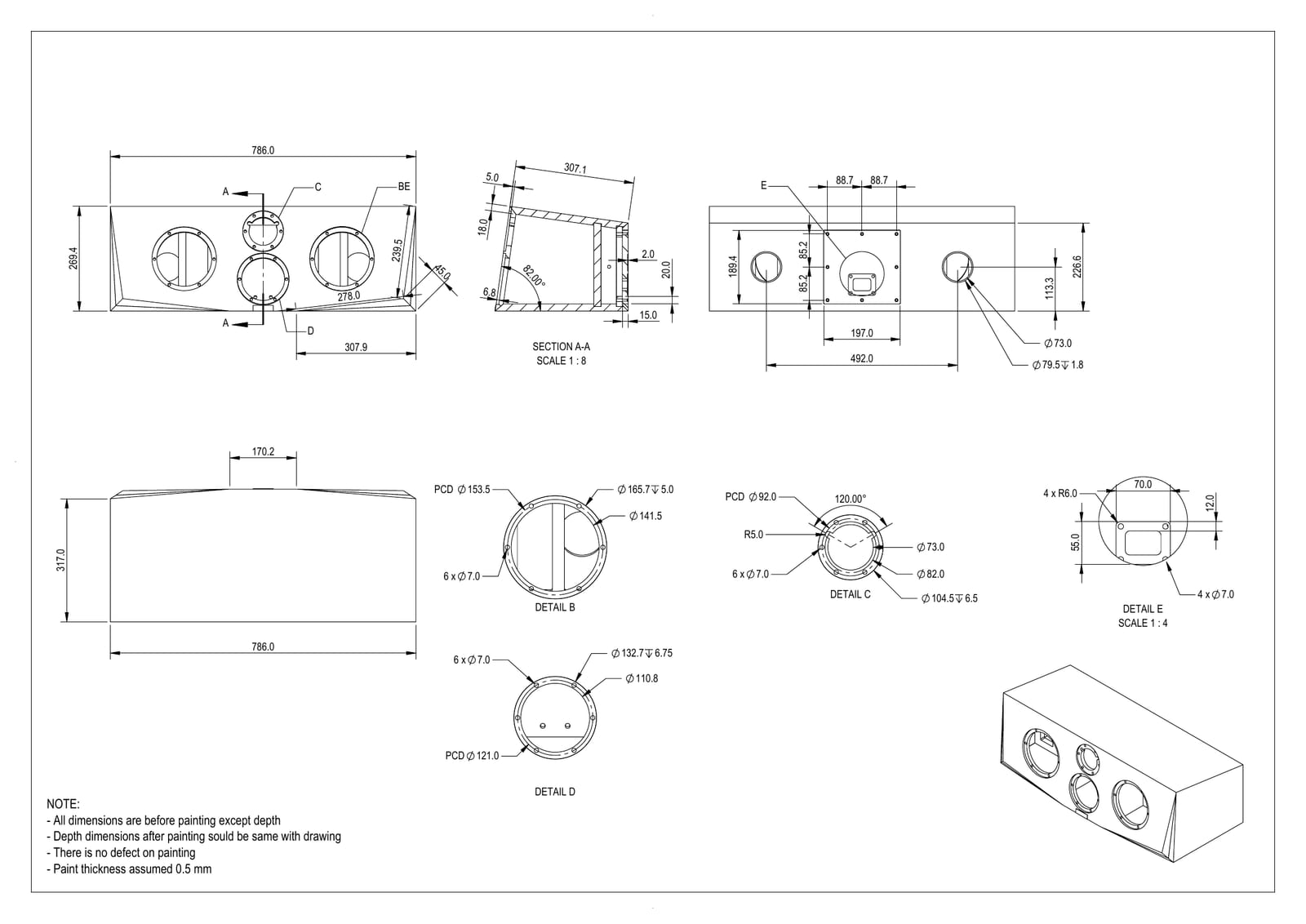

Open manual (opens in a new tab) PDF / cabinet drawingsCabinet drawing book

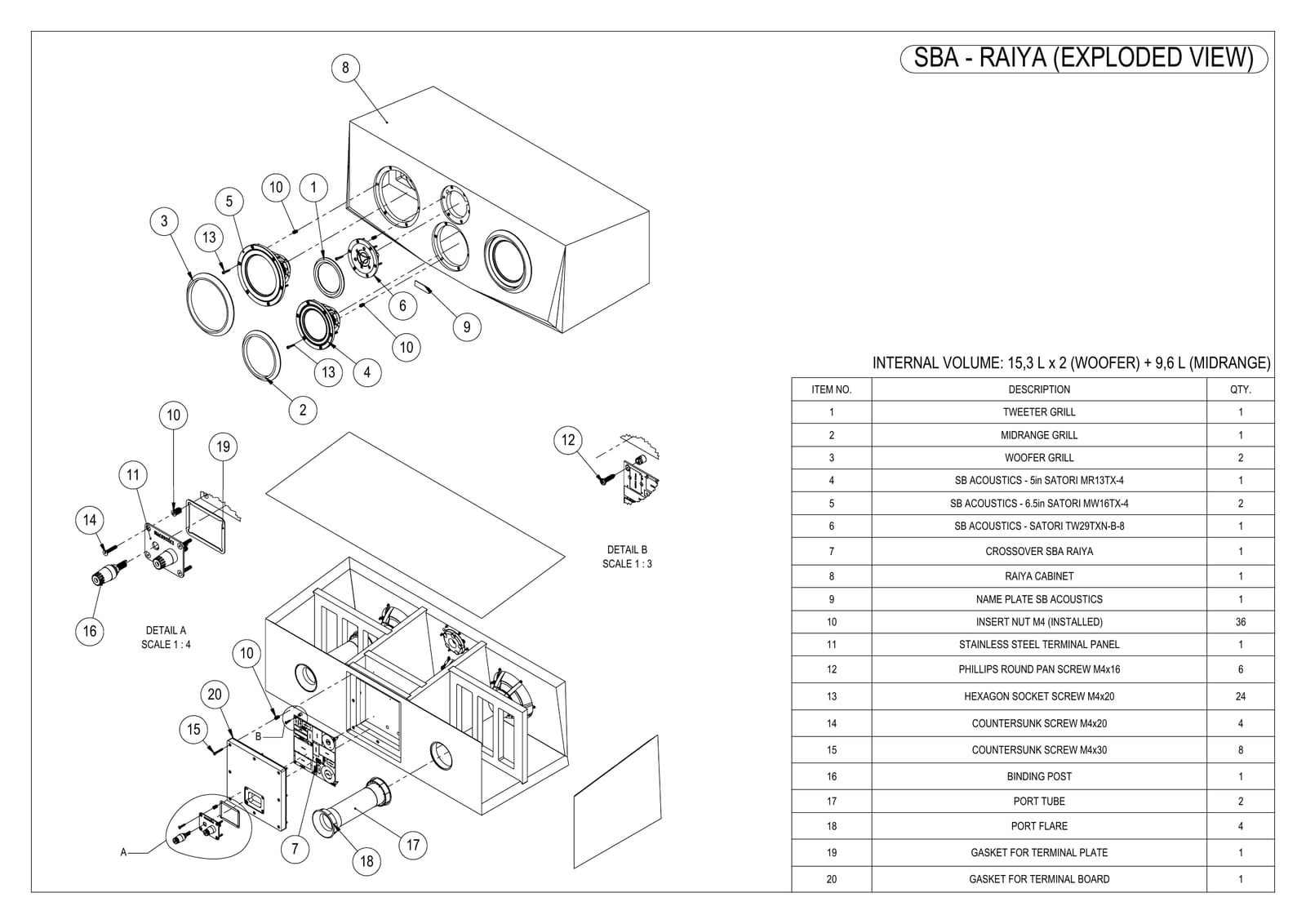

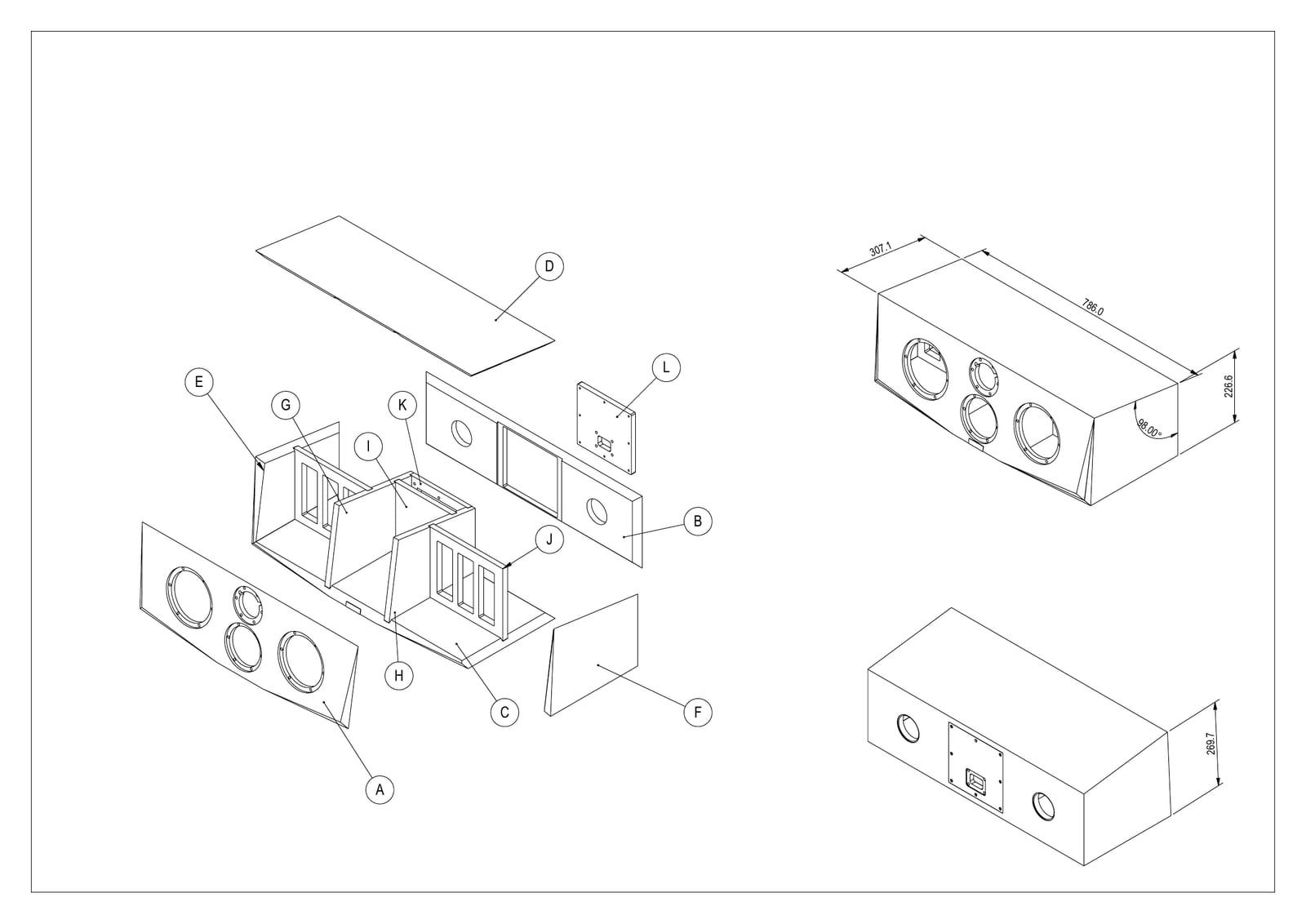

Official exploded views, internal structure and cabinet drawing detail.
Open drawings (opens in a new tab)
09 / Action — no smoke machine
Bring us the tricky system.
Got Ara Tx, Rinjani Tx or Sasandu Tx? Raiya Tx is the missing middle. Got something else splendid either side of the screen? Send us the speakers, room and electronics. We will tell you whether Raiya Tx is a sensible idea, then set up a proper listen.
Plan my Raiya Tx centre (opens WhatsApp in a new tab)Your message opens with the useful details already listed: front speakers, electronics, room, screen and seating. Less faff. Better answer.
