Sasandu Speaker Kit
Sasandu Speaker Kit

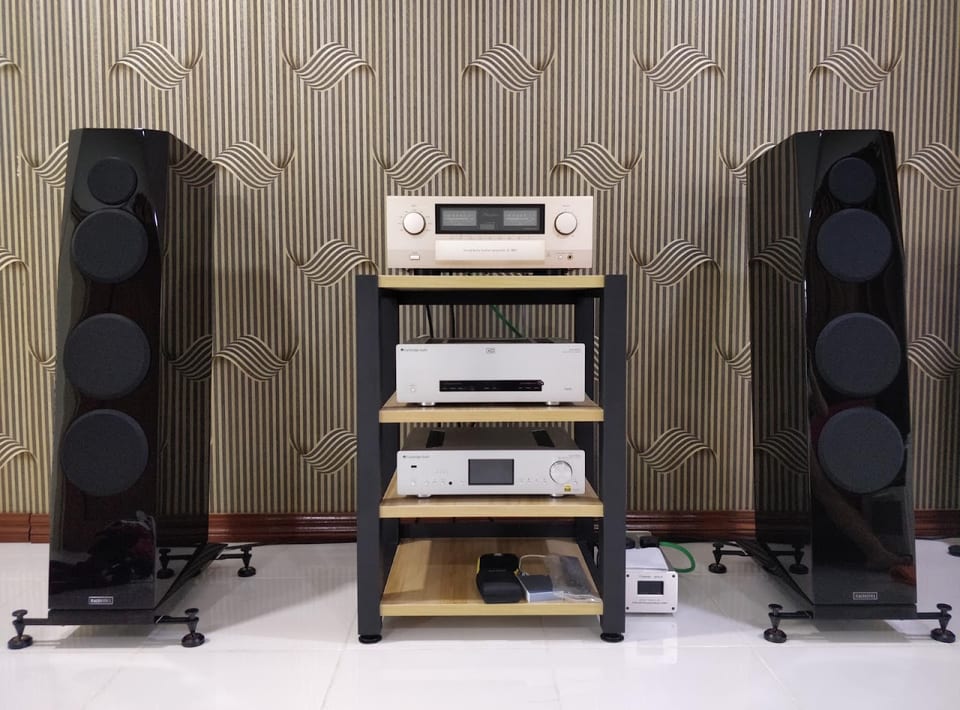

SB's latest SB kit, the Sasandu!
One of many happy owners in KL, Gan modified his Sasandu with outriggers to improve its looks and coupling to the floor.
Rinjani Be Speaker Kit
Rinjani Be Speaker Kit
Li Yang, a customer was blown away by the Rinjanis and custom ordered his end game version in Lamborghini Orange with upgraded Beryllium Tweeters.
"As a IEM maker and headfi expert I haven't found a pair of speakers that satisfies me until the Rinjani. They are perfect and I am happy to have achieved end game just like Artisan Acoustics suggested!
The beryllium tweeter is amazing, when I put my ear close to them, its completely transparent sounding"
Learn More About The Rinjani Be Speaker Kit

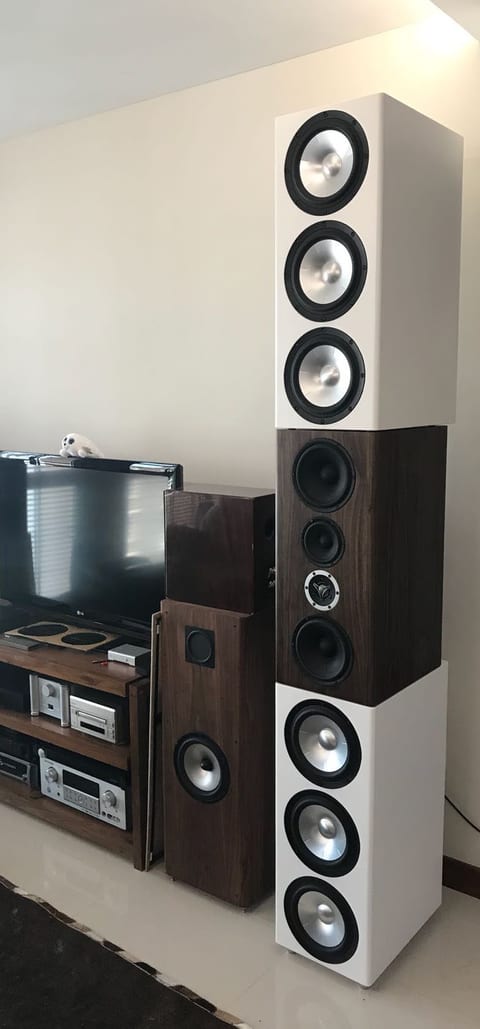

Satori Statement Line Array
Satori Statement Line Array
Ryan's attempt at the best possible sound for his HDB BTO living room. The result are a pair of reference 4 way active speakers with line array bass to discover exactly how good SB can sound.
"The music dynamics, transients are entirely effortless and starts stops on the dime. The phrases of 'being there', 'live' used to describe past speakers are all but caricatures compared to what these speakers presents."
Driver Layout
Highs 2 pcs TW19BN Satori Beryllium Tweeter
Mids 2 pcs MR13P-8 Satori 5" Midwoofer
Lower 4 pcs Mids MW19P-8 Satori 7.5" Midwoofers
Bass 6 pcs SB23NACS45-8 SB Aluminum Woofers

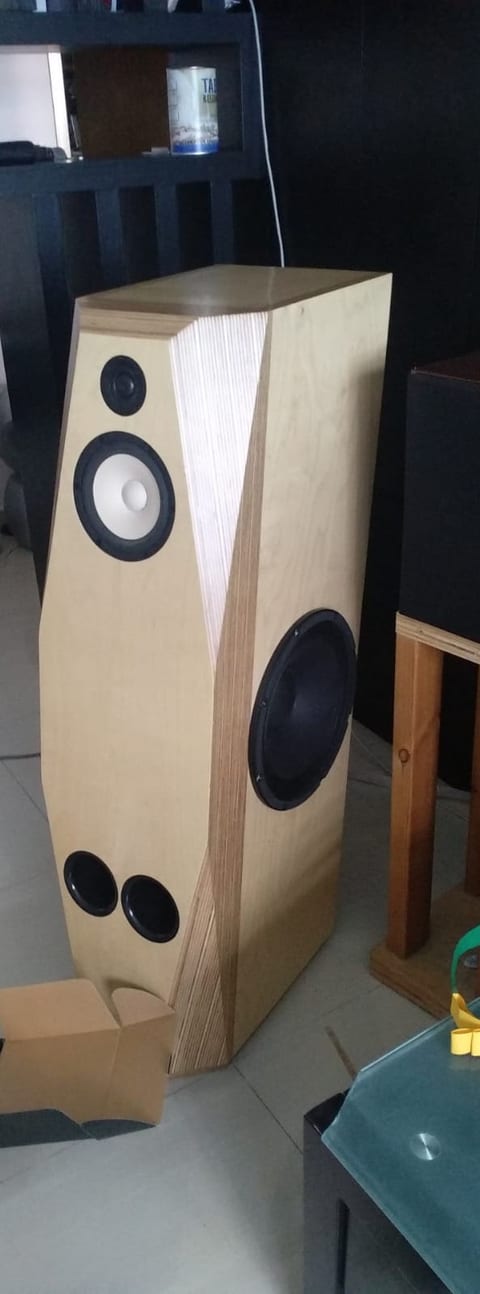

Avalon Inspired FAST 2 Way
Avalon Inspired FAST 2 Way
Sanjay's experiment of sorts, the Satori MR16P-4, the white midrange actually measures and performs better than regular fullrange drivers. As such, this is a FAST design with the Satori 6.5" running fullrange with bass handed to the SB Audience (Pro audio) 12" Woofer. The tweeter is not connected but left there in case the 2 way idea did not work.
It did so the tweeter remains unconnected resulting in a dynamic 95db sensitive speaker well suited for single ended tube amps like 2A3 or 300B.
Driver Layout
Fullrange 2 pcs MR16P-4 Satori Midrange
Bass 2 pcs SB Audience 12" Woofer

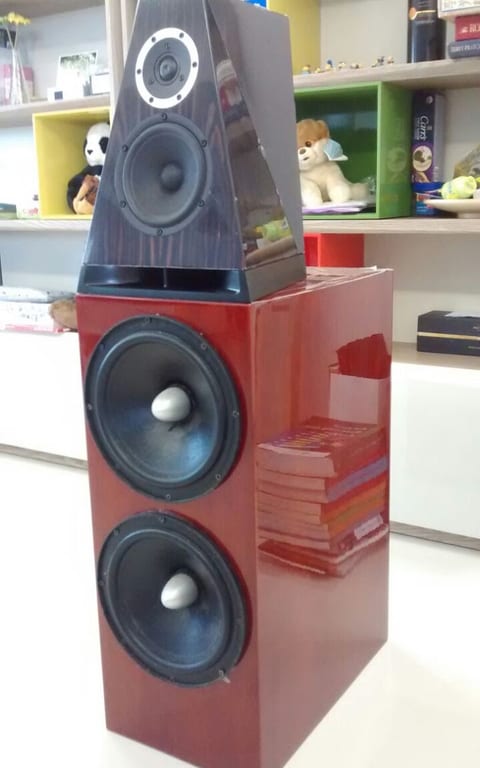

Kalasan Wilson Audio Watt Puppy Style
Kalasan Wilson Audio Watt Puppy Style
The nice trapezium bookshelf is a SB Satori 2 way kit, the Kalasan.
They happened to fit a pair of woofer modules built previously.
Bookshelf Speakers SB Speaker Kit Kalasan
Woofer Modules 2 pcs Acoustic Elegance TD10S-8 Apollo Upgrade

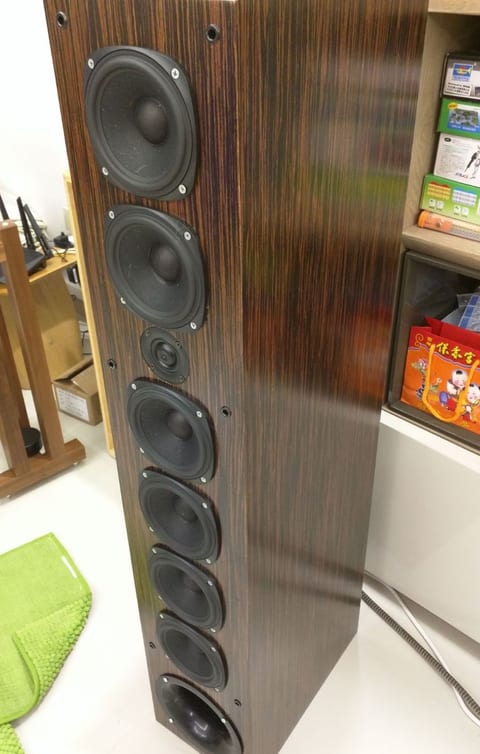

Uluwatu - the 95db 8ohm Tower of Power
Uluwatu - the 95db 8ohm Tower of Power
This was rushed to completion for a local diy hifi meet in late feb 2016
Following Curt Campbell's design he name the Uluwatu, these are
Comparatively, these 5" woofers' midrange is a less detailed than the Satori but WOW the low end is more extended, impactful, extremely dynamic, agile and has none of the overhang/delay in ported enclosures. The MLTL enclosure design definitely plays a part in the delightful bass.
2.5 way vented floorstand design by Curt Campbell
Sensitivity ~95db
Nominal Impedance 6ohm
Tweeter SB29RDNC-C000-4 Ring Radiator Tweeter
Midwoofers 6pcs SB13PFC25-08 Midwoofers
Dimensions
Width 21.6 cm
Height 120 cm
Depth 40 cm
Max SPL 118 dB @ 1 meter
